500MLOCK Manual Safety Lock for the 500 Series Hydralift
Included with all 50 series
Ensure maximum safety and reliability with the 500MLOCK Manual Safety Lock, designed specifically for the 500 Series Hydralift. This essential safety feature prevents unintended lowering, giving you peace of mind while transporting your cargo.
Installation Instructions (Fit 01):
Raise the lift to the fully upright position.
Locate the passenger side of the lift.

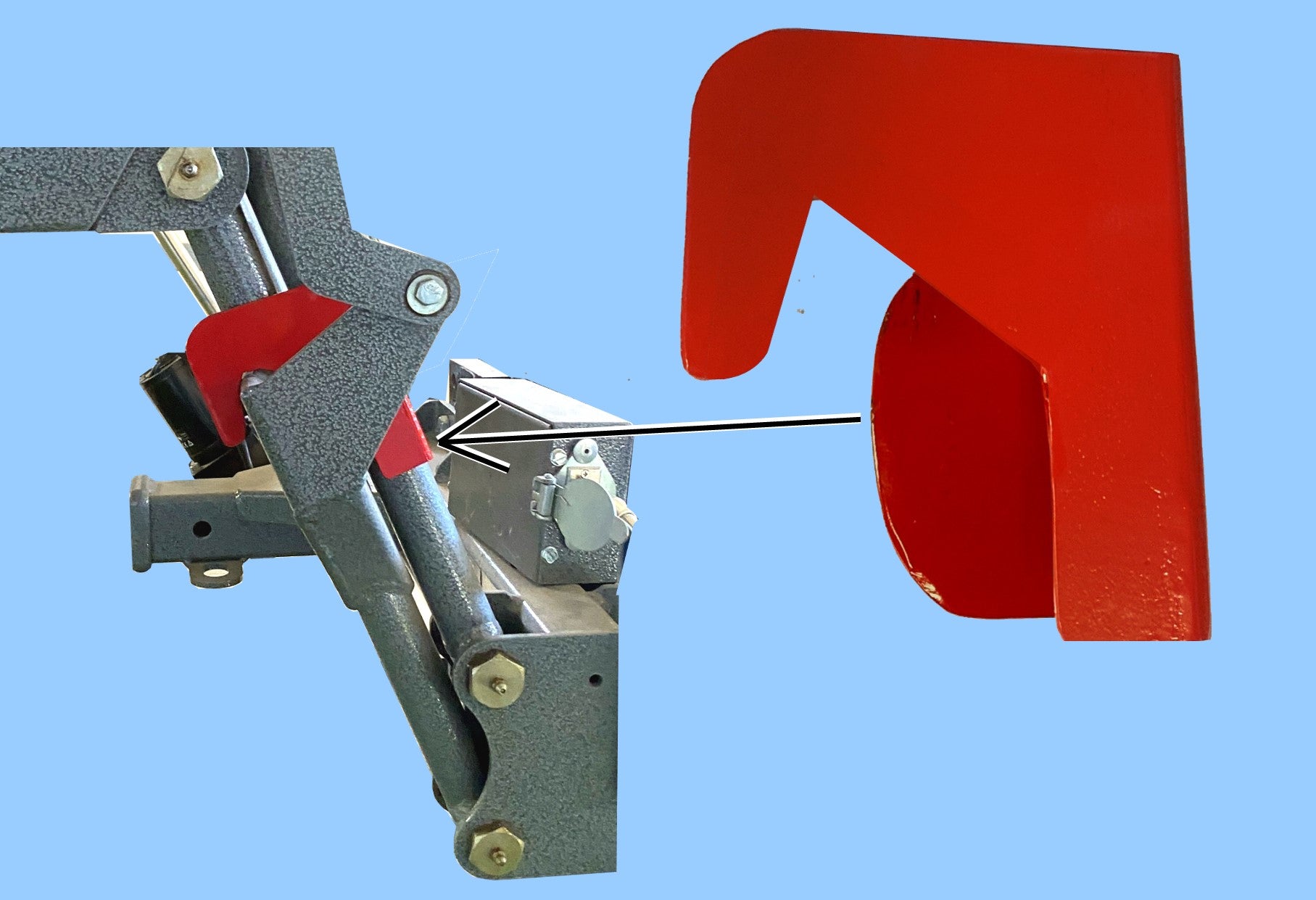

Position the 500MLOCK by dropping it over the H-Frame tube above the pivot arm, as shown in Figures 02 & 03.
Safety Function:
In the unlikely event of a lift failure, the 500MLOCK will bind the lift in place, preventing it from lowering unexpectedly.
The lock will remain engaged until manually removed.
⚠️ IMPORTANT:
You must remove the 500MLOCK before attempting to lower the lift—failure to do so may cause damage to the system.
Enhance your 500 Series Hydralift with the 500MLOCK Manual Safety Lock—a simple, effective way to keep your lift secure and protected!
